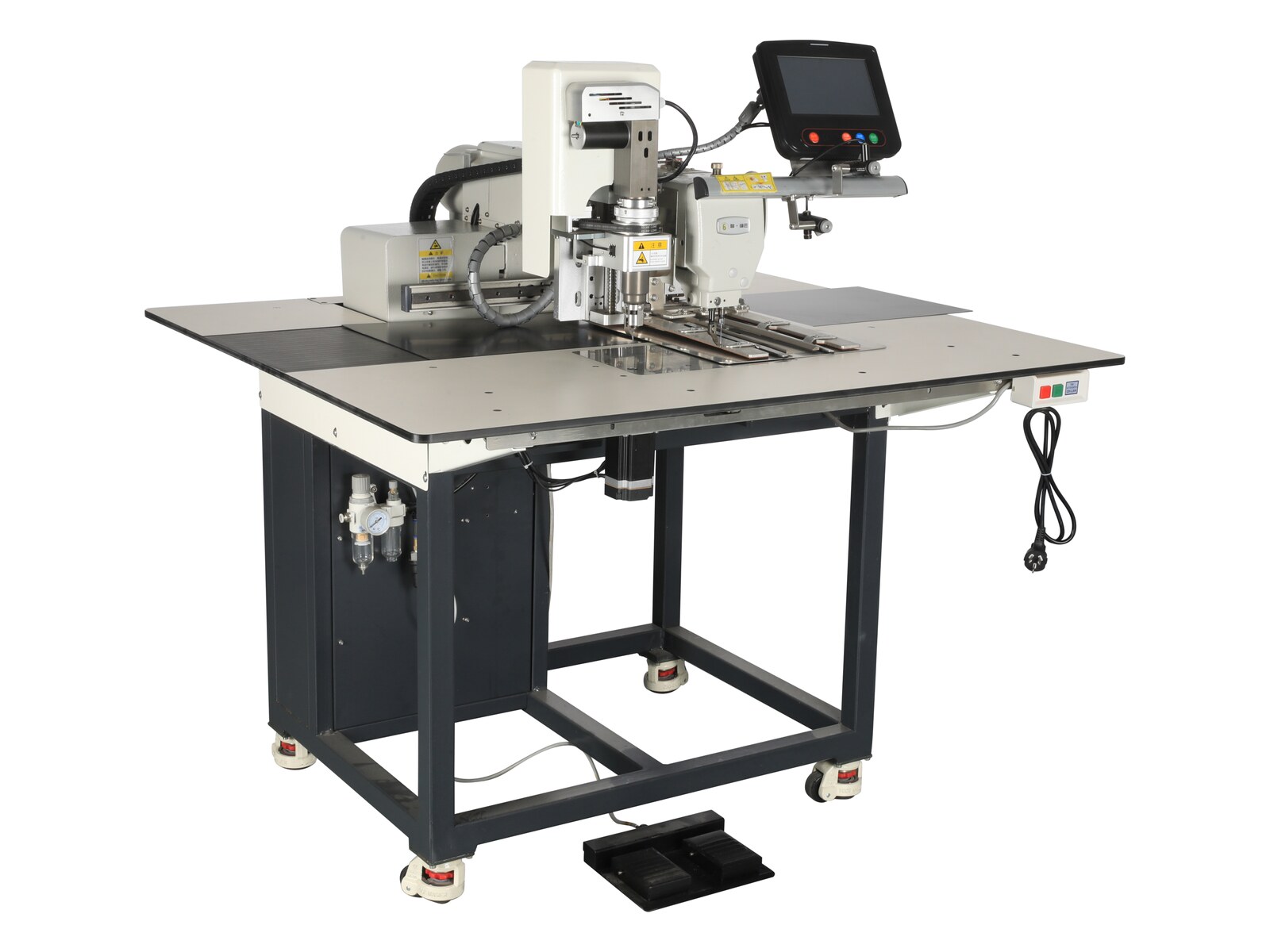

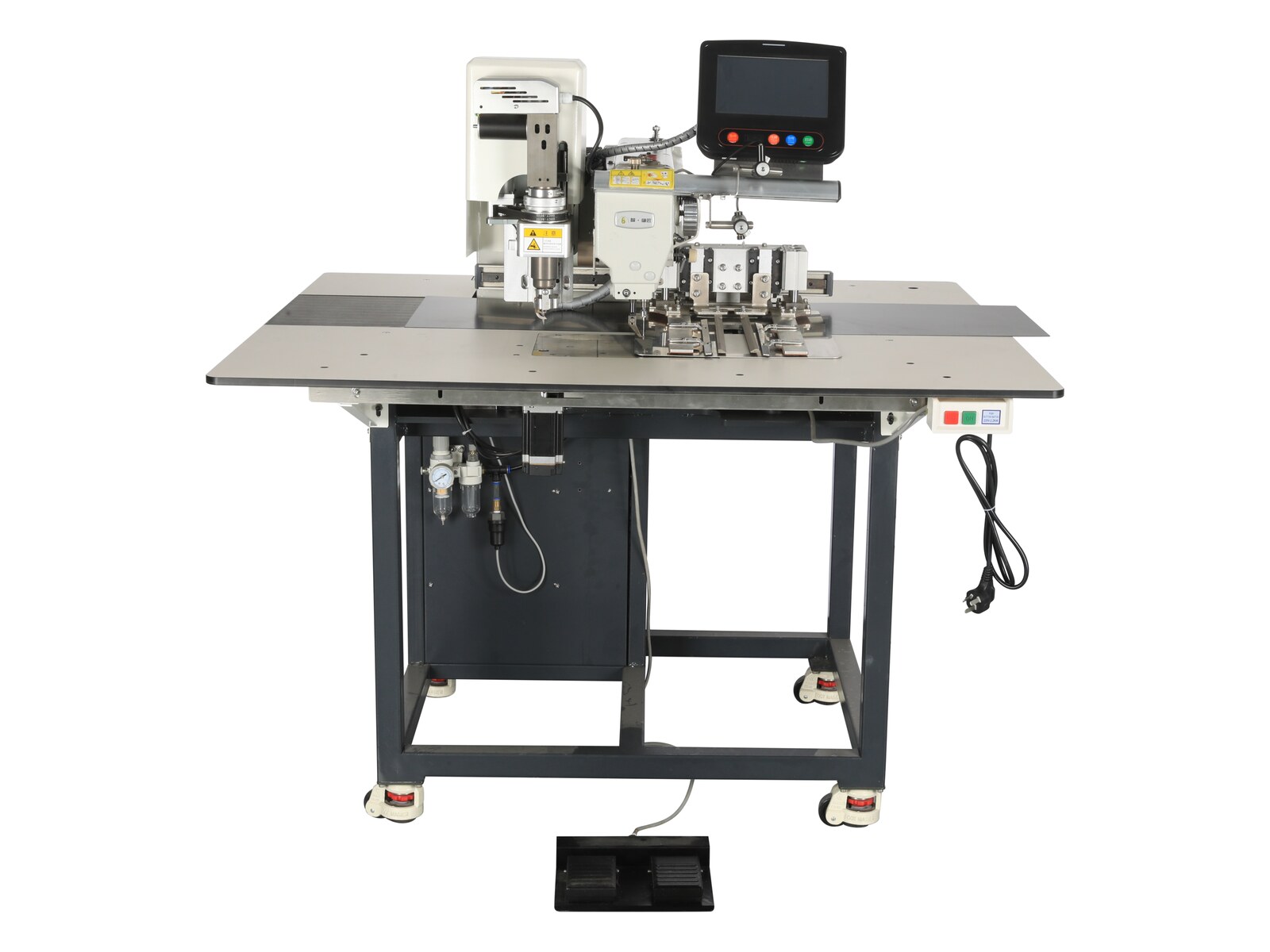

Placket opening machine (cold knife)
Garments: Polo shirts, T-shirts
Overview
Mark-free placket cutting for polo shirts, T-shirts and similar
Main features
- Same clean vibrating-knife cutting system, applied to plackets
- Mitsubishi 4020 head
- Compatible with horizontal and vertical templates
- More precise positioning
Technical specifications
| Specification | Details |
|---|---|
| Head | High-speed pattern machine (Mitsubishi 4020) |
| Max. sewing speed | 2800 rpm |
| Needle | DP×17 |
| Stitch length | 0.1-12.7 mm |
| Sewing area | 400×200 mm |
| Cutting area | 250×200 mm |
| Power | 750 W |
| Vibrating-knife motor power | 150 W |
| Knife motor speed | 0-16000 rpm |
| Knife travel range | 150 mm |
| Knife voltage | DC24 V |
| Voltage | 220 V |
| Storable patterns | 999 (stored internally) |
| Thread-break detector | Yes |
| Packing dimensions | 1350×1250×1450 mm |
| Machine dimensions | 1180×1150×1250 mm |
| Net weight | 208 kg |
| Gross weight | 300 kg |
Applications
- Plackets of polo shirts, T-shirts and similar
