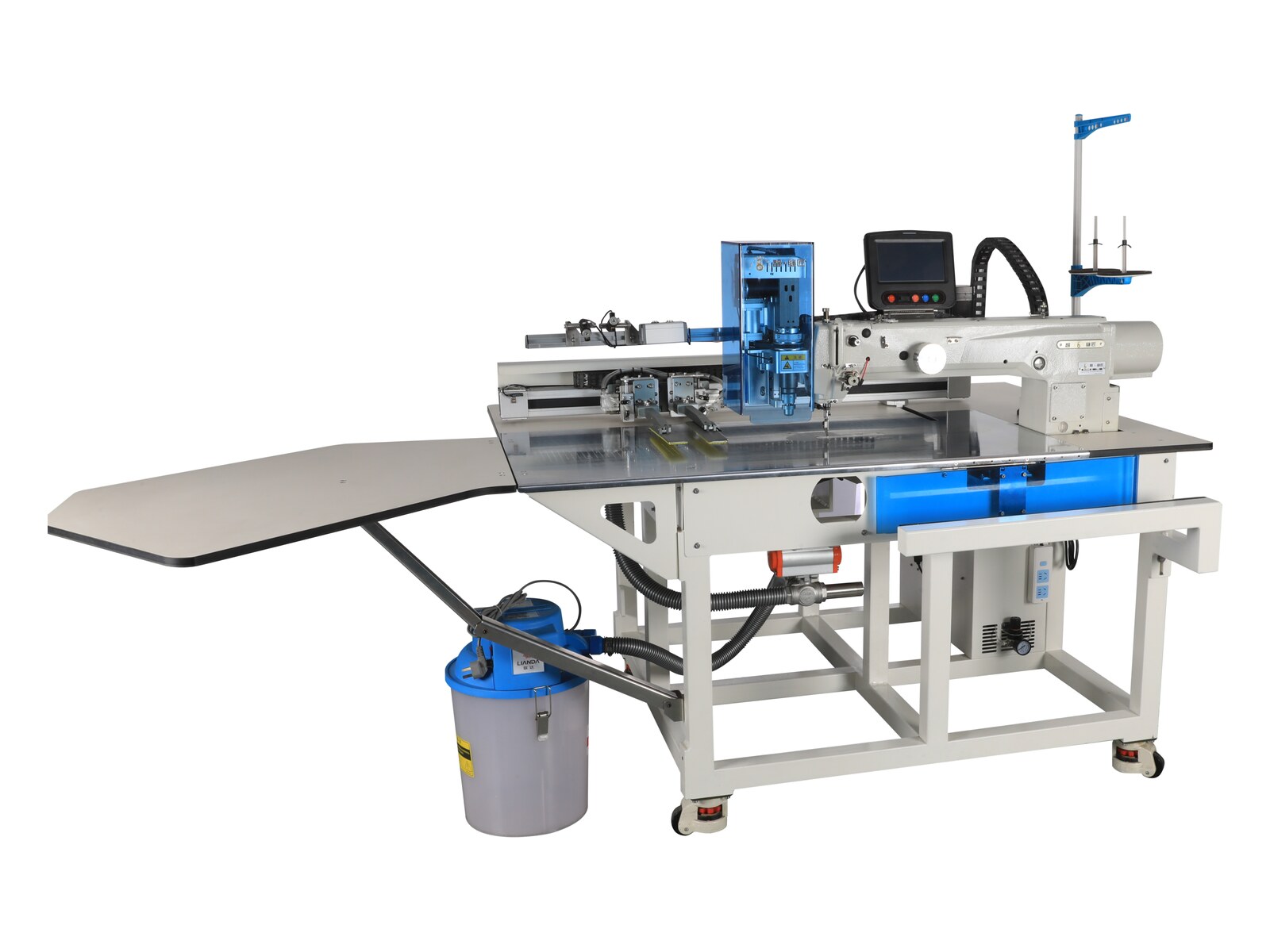

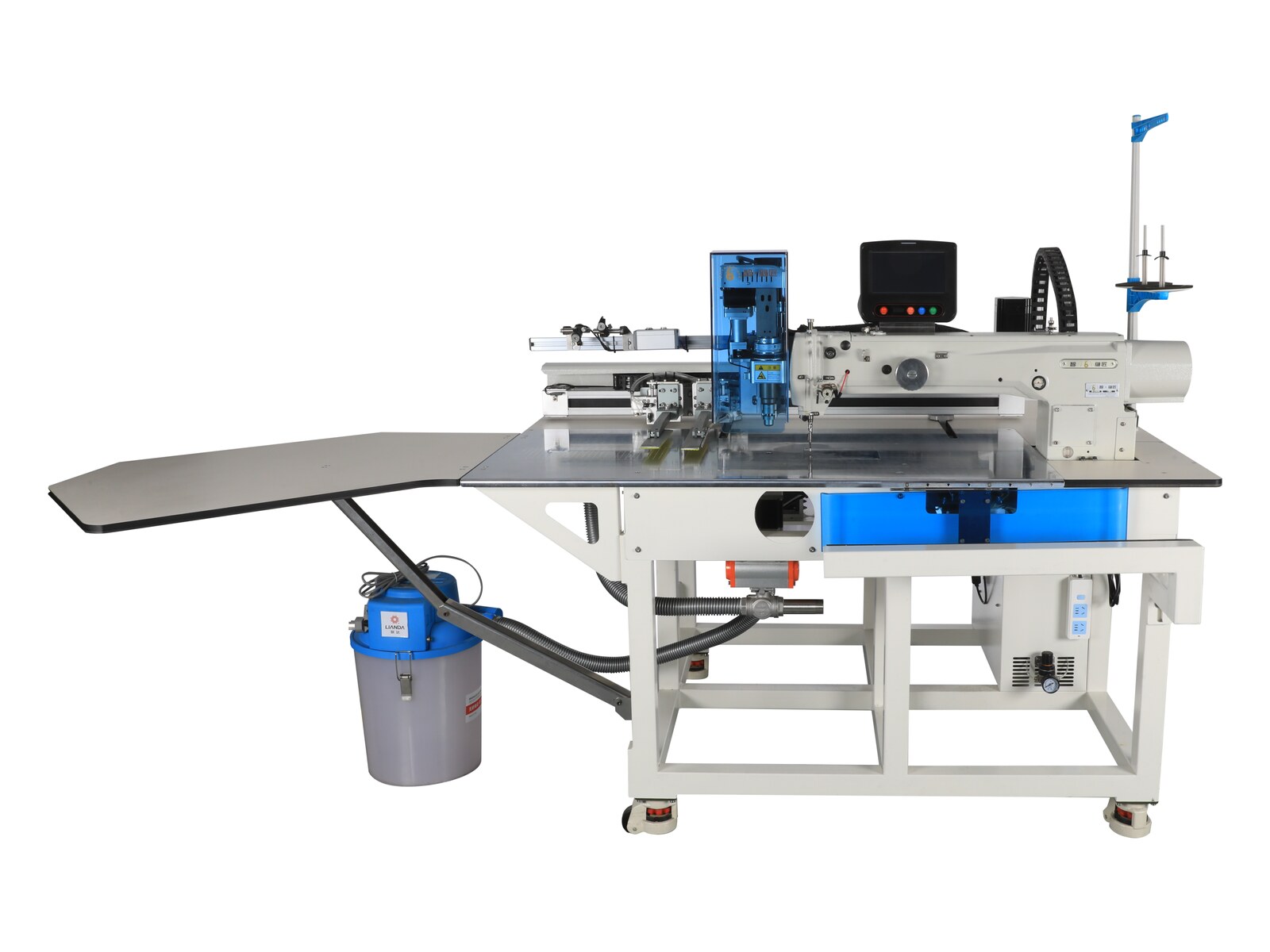

360° rotary cutter placket machine
Garments: Polo shirts, T-shirts
Overview
Placket machine with a 360° rotary cutter
Main features
- 360° rotary cutter
- Vibrating knife blade of 30×0.3×0.63 mm and 16°
- 480×400 mm sewing area
Technical specifications
| Specification | Details |
|---|---|
| Head | High-speed pattern machine |
| Voltage | AC220 V ±10% (50-60 Hz) |
| Power | 1200 W |
| Sewing area | 480×400 mm |
| Max. sewing speed | 2800 rpm (with stitch pitch under 3 mm) |
| Needle | DP×17 |
| Stitch length | 0.1-12.7 mm (minimum resolution 0.1 mm) |
| Stacking thickness | 80 mm (standard stacking thickness) |
| Storable patterns | 900 (stored internally) |
| Knife travel range | 87-90 mm |
| Vibrating blade stroke | 5 mm |
| Knife descending range | 0-80 mm |
| Knife motor speed | 0-9000 |
| Knife voltage | DC24 V |
| Vibrating knife blade | 30×0.3×0.63 mm × 16° |
| Weight | 301 kg |
Applications
- Garment plackets
